High Performance VA Flow Meter Technology

09/06/2020,

High Performance VA Flow Meter Technology

BKW are delighted to partner with Brooks Instrument as their exclusive distributor in the UK.

Brooks Instrument has more than 70 years global flow experience in over 80 countries, successfully measuring flow applications including Chemical Injection, Anti-scale Injection, Corrosion Inhibitor injection, Seawater Flush, Fuel Gas flow and Flare Gas applications.

When you need process-proven technology for the flow measurement of gas, liquid or steam, or in-depth technical expertise, Brooks Instrument is your trusted source for reliable, accurate solutions.

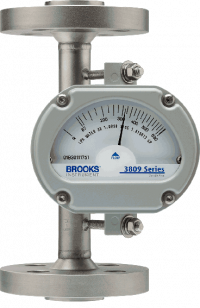

MT3809 Series

The MT3809 Series metal tube VA flow meter is practical and cost effective. It is the default choice for Engineering Procurement Contractors (EPC’s) and major industrial facilities worldwide.

Application

Features

mt3809g-20 high
  • Simple liquid or gas flow measurement
  • Monitoring lubrication and/or coolant for rotating equipment
  • Measurement of additives
  • Monitoring gases for furnaces
  • High-pressure flow on offshore oil platforms
  • Chemical injection
  • Flow meter offers extremely wide range of flow rates
  • Temperature ratings from -198°C to 420°C
  • Pressure ratings up to 6,000 psi (standard products) and up to 20,000 psi (custom models)
  • Enhanced LCD display with local operator interface (optional)
  • High-/low-flow alarm functions that meet the requirements of IEC61508 SIL2
  • 316SS stainless steel flameproof housing meets ATEX IIC gas rating
  • Selection of corrosion resistant wetted materials and indicator housing

Benefits

  • Extensive process connection options
  • Weldneck flanges as standard
  • Designed to meet ASME B31.3
  • Proven reliability and dependability
  • Global approvals for use in hazardous area environments
  • No power required – reduces usage cost and installation complexity
  • Wide pressure and temperature range enables consolidated product selection for multiple applications
  • Repeatable flow measurement even at very low process temperatures and the highest process temperatures of any VA meter
  • FOUNDATION™ Fieldbus transmitter qualified by EMERSON seamlessly connects with full interoperability to Delta V control systems and AMS Device Manager

Click here to view instrument data sheet

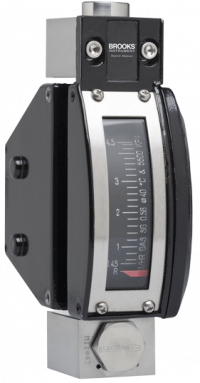

MT3750 Series

The MT3750 Series metal tube VA flow meter offers accurate low-flow measurement and long-lasting performance in harsh environments. Featuring compact design with extensive options for threaded or flanged connections, making installation and retrofit upgrades easier.

Application

Features

mt3750
  • Simple liquid or gas flow
  • Rotating equipment flow
  • Process analysers
  • High-pressure wellhead flow for offshore platforms
  • Burner control
  • Gas chromatography
  • Chemical injection
  • Purge liquid or gas metering
  • Panel mounting
  • Low flow ranges: down to 100 l/hr
  • High pressure and temperature rating
  • Compact size for panel or field mounting
  • Multiple threaded or flanged connections
  • No external power required
  • Operational accessories include needle valve, flow controllers and alarms
  • Available with 4-20 mA flow signal transmitter, and/or reed switch alarm signals or inductive alarms for high/low-flow conditions


Benefits

  • Repeatable accuracy in low-flow rate applications with high-pressure or hazardous fluids
  • Stainless steel construction and compact size enables easier installation into confined spaces, hazardous environments or remote areas
  • Compatible with a wide range of liquids and gases
  • Multiple connection types enable use in multiple applications

Click here to view instrument data sheet

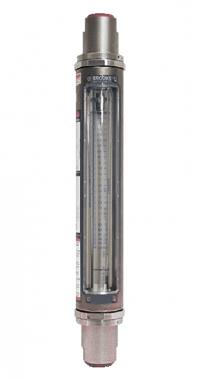

GT1600 Series

The New GT1600 Series glass tube VA flow meters are versatile and cost-effective for general use in flow applications with simple visual indication requirements.

Application

Features

GT1600-Series back ground_2
  • Industrial processes
  • Pharmaceutical production
  • Oil and gas pumping and refining processes
  • Chemical manufacturing
  • Burner control
  • Water treatment and distribution systems
  • General liquids monitoring
  • 316 stainless steel frame, polycarbonate safety shield and 316/316L process fittings
  • Process connections can be rotated 360°, 180° viewing window, panel or wall mount option
  • Alarms for high and low-flow (optional for all flow ranges); Purchase at time of order or for retro-fit
  • Multiple accuracy levels available
  • Flanged or threaded connection available (horizontal or vertical)
  • Adjustable scale to compensate for process variation
  • Retro-fits legacy models

Benefits

  • Premium materials of construction
  • Easy installation and viewing at any angle
  • Monitor critical flow conditions with optional alarms
  • Optional integral valve minimises connections and leak points
  • Easy in-situ maintenance: Clean or replace tube & float without removal
  • No power required; reduces installation cost and provides flow measurement in hazardous areas

Click here to view instrument data sheet
