Bespoke valve solutions, with leading manufacturers

With our combined knowledge, experience and partnerships, BKW can supply you with an assembly that fits your process application requirements, irrespective of the complexity.

IMG_0762 Edit

The IBF range of Double Block and Bleed Valves meets the requirements of the process industry, in a particular, natural gas and aggressive media applications.

The compact design of the IBF range integrates one or two shut-off valves, this allows the process to be separated from the instrument side and vent valve. The modular design allows the arrangement of ball valves and/or needle valves to be used, ball valves are recommended for applications with liquid media or dirty processes due to easy cleaning of the straight-through internal bore.

The seat design and the redundant seals of the valve body ensure high durability and tightness.

If the soft seal fails, the metal-to-metal seat will ensure that the valve can still be operated and set to a safe position. The tightness is guaranteed for the connection between the process and the measuring instrument and out to atmosphere.

The superior machined finish of the internal parts allows very smooth and precise operation, even at high pressures or after long periods without valve operation. The surface finish also minimises corrosion with aggressive media and allows easier maintenance.

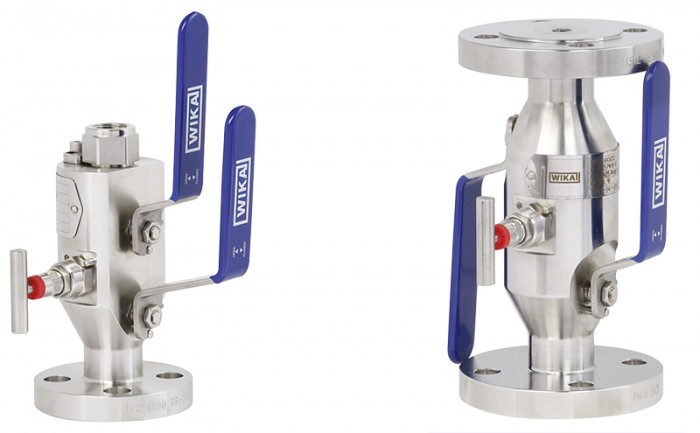

Double_Block__Bleed_Valves

Applications

  • Oil and gas industry, chemical and petrochemical industries, power plants and general process industries
  • Liquids and gases, including aggressive viscous or crystallising media
  • Direct connection of pressure measuring instruments to flanged pipes or vessels without the need for additional interface valves
  • Shut-off valve with drain/vent function as commissioning/maintenance point for instrumentation
  • Isolation for level indicators or differential pressure instruments in level measurement

Special features

  • Increased safety with metal enclosed seats and double body seal
  • High-quality finish offers smooth operation with low torque and low wear
  • Leak-tested tightness in accordance with BS6755 / ISO 5208 leakage rate A
  • Customisable configuration of ball and needle valve arrangements
  • Solutions for valve and instrument assemblies
