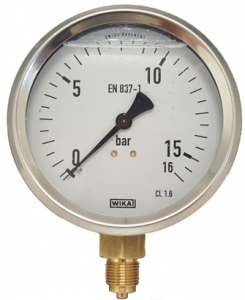

Fire Sprinkler Pressure Gauge
WIKA type 113.533 are vibration and shock resistant with a robust design.
Model: 113.53.100
| Nominal Size: | 100mm |
| Accuracy: | +/-1.6% FSD |
| Design: | EN837-1 |
| Range: | 0 – 16 Bar g |
| Mounting: | Bottom-Direct (standard) |
| Permissible Temperature: | Ambient -20/+60°C / Medium +60°C Maximum |
| Ingress Protection: | IP 65 as per EN 60529 |
| Case & Crimped Bezel: | 304 Stainless Steel |
| Window: | Plastic Cyrstal Clear |
| Pressure Element: | CU Alloy or C-Type |
| Movement: | Swiss Movement |
| Process Connection & Block: | Brass-3/8° BSP (parrallel) male (standard) |
| Pointer: | Black Plastic |
| Dial: | Aluminium, White, Black Lettering, with Pointer Stop Pin |
| Filing: | Glycerine |
Supplied with QA Quality Certificate referencing the relevant production batch number.
No Loss Connector
| Body Material: | Brass |
| Spring Material: | Stainless Steel |
| Instrument Connector: | 3/8° BSP Female |
| Process Connection: | 1/2° BSPT |
| Maximum Pressure: | 25 Bar |
If you have an application that you would like to discuss please contact BKW on 01617074838 or email sales@bkwinstruments.co.uk
